SP200 Yacht Shore Power Converter

Maximises power availability

Using the latest modular design, the SP200 provides a highly reliable, clean and efficient shore power conversion system. Active front-end technology on each shore cord input enables maximum power transfer to the yacht. Drawing clean sinusoidal module redundancy current at Unity Power Factor from any power source not only ensures minimum supply disturbances but increases power availability to its maximum. Multiple input converters can be connected to any supply available.

Protection from shore supply

High-grade transformers, connected directly to the shore cord, guarantee galvanic isolation at the lowest possible weight. No common-mode RFI can reach the shore supply and there is no path for any currents which may be sensitive to the shore supply breaker.

Continuous clean output power

The system output delivers a stable and clean waveform for powering on-board equipment. Loads range from utility services (heating, lighting and air conditioning) and entertainment (television and audio) to marine (winch, pumps and navigational equipment).

Built-in synchronisation

Built-in synchronisation allows for seamless transfer from shore to generator and vice versa. In addition, automatic synchronisation allows the SP200 converters to start on a live bus, minimising on board control and automation.

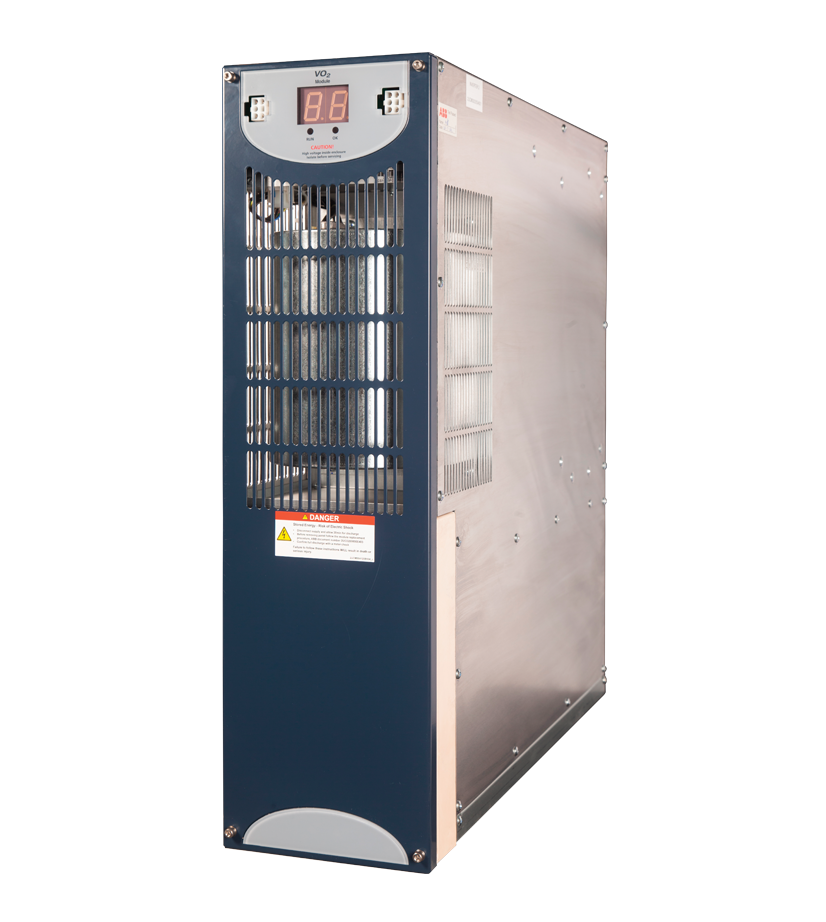

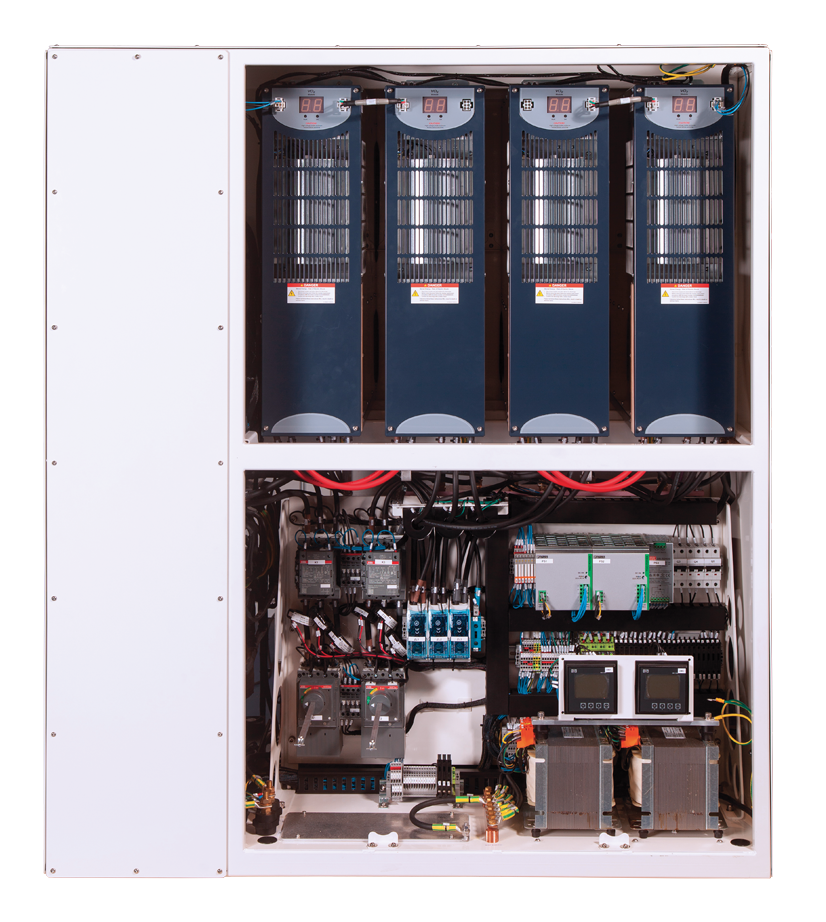

Unique modular design

The modular design makes the system compact and highly serviceable. In the unlikely event of module damage, the system will continue to operate at a reduced capacity. Modules can be isolated and replaced with minimal downtime. On replacement, each module will automatically be configured ready for service.

SP200 benefits, features and options

Benefits

  • Reliability and performance guaranteed
  • Lower operating cost with better efficiency
  • No interference with sensitive equipment
  • Protection from shore supply faults
  • Quiet, trouble-free operation
  • Full galvanic isolation
  • Easy connection for crew
  • Cabinet customisation as standard

Features

  • Worldwide operation, wide input voltage and frequency range
  • Compatibility with shore supplies worldwide
  • Reliable connection to new generation pedestals with built-in RCD protection; no nuisance tripping caused by earth leakage
  • Maximum power transfer from shore supply to yacht
  • Designed for continuous and automatic operation
  • RFI protection to prevent on board and shore supply disturbances
  • Pure sinusoidal clean output supply
  • Rugged overload capability
  • Built-in module redundancy without interruption of power
  • Seamless transfer between shore and generator
  • System can connect to a live bus, minimising control and automation
  • Parallel load share with generators for extra power
  • Power limiting through soft start and soft stop
  • Low noise operation
  • Graphical touchscreen user display
  • IP43 and 45°C rating as standard

Options

  • Multiple independent shore cord inputs
  • Single/dual shore cord selector
  • Bow/stern thruster operation
  • Combined CleanNet™ operation when at sea
  • Reactive Power Conditioning (RPC model)
  • Water cooling
  • Shore cord kW/h display
  • Cabinet colour

  SP200 specification

Input
Type Three phase active rectification
Voltage to 520 VAC
Frequency to 64 Hz
Displacement power factor Unity
Output
Type Three phase, neutral, isolated earth*
Voltage 208 to 480 VAC
Frequency 50 or 60 Hz
Voltage distortion < 2.0% (linear load)
Overload 10 minutes 125% | 30 seconds 150%
Environment
Protection Thermal, overload, short circuit
Operating temperature 0 to 45°C
Humidity < 95% non-condensing
Efficiency of system > 92% typical (at full power)
Cooling Forced ventilation/water cooling optional
Noise < 75dBA @ 2m
Enclosure IP43
Mounting Bulkhead or floor
Standard Colour† Powder-coated RAL 9010
Interface 8.4” graphical touchscreen display with monitoring and event log Modbus RTU RS485
*Specified on order. All specifications are subject to change.
Other colours available on request
OUTPUT Configuration H (MM) W (MM) D (MM) WT (KG)
SPLIT PHASE 240V/120V 60Hz
60 kVA 1 Module Pair 1900 800 850 948
120 kVA 2 Module Pair 1900 1100 850 1810
THREE PHASE 208V/120V 60Hz
100 kVA 1 Module Pair 1900 1000 850 1028
200 kVA 2 Module Pair 1900 1400 850 2153
THREE PHASE 400V230V 50Hz
100 kVA 125 Amp 1160 1010 850 828
200 kVA 125 Amp 1400 1300 850 1332
300 kVA 125 Amp 1300 2500 850 2171
400 kVA 125 Amp 2263 1600 1010 2592
500 kVA 125 Amp 1800 2350 1010 3005
600 kVA 125 Amp 1800 2600 1010 3648
700 kVA 125 Amp 1800 2850 1010 4228
800 kVA 200 Amp 1800 3100 1010 4960

SP200 testimonial

Magnus Marine shore power converters are pretty much a fit and forget appliance.
Steve Dufton
Chief Engineer
M/Y Kibo
